Click Here to see the You Tube HD video.Make sure you pick HD Quality in YouTube and use the larger player option.
Don't want to or can't access You Tube? Watch the .mp4 video directly
If you want to follow along with the SU Podium Browser video tutorial and use the same Podium Browser materials and components, please read below.
1. Download the SketchUp 7 based model here. This model is SketchUp 7 based but you can open it in SketchUp 8 or SketchUp 2013.
2. Following along the tutorial portion of the SU Podium Browser video.
3. The table below has the components and materials used to create the photo-realistic image in the video tutorial.
Materials and Component Table used in the Video Tutorial
Each item has an image link to show where the item is located in the Browser.
Note: This video uses Podium Browser Version 1 and the interface has changed since this video was recordered
|Item in model||Component or material used||Location in PDM Browser||Notes|
|Wood Floor||Wood_acajou||Podium Materials/ Wood|
|Wall||Stucco||Podium Materials/ Stucco|
|Ceiling||white color||SketchUp Materials/ Color||go to the SketchUp Materials dialog|
|Ceiling beams or truss||wood 11||Podium Materials/ Wood||Suggestion: open one of the truss instances using Edit In Place because placing the material on all the faces is difficult. However, not all the trusses are instanced. All the trusses are on Studs or Studs1 layer. If you use Edit In Place, you will need to download the wood 11 material in the new SketchUp instance.|
|Glass in the Windows||glass_thin_02||Podium Materials/ Transparent||
You can do this by editing one instance of the Window group or use Edit In Place.
|Door Handle||chrome||Podium Materials/ Metal||It's recommended to open the instanced Window components using Edit In Place and then open the door handle group in another instance using Edit In Place and then download Chrome material into the new SketchUp instance. Save after pasting the material to the door handle surface and close. Then save the Window group and close.|
|Window Frame||white color||SketchUp Materials/ Color||Suggestion: After adding the glass material to the Windows, simple assign a white color to the Window group.|
|Outside Patio||Paving_18||/ Textures/ Paving||The free textures are different from the rest of the Browser. They are drag and drop items. Once you drop the texture thumbnail into the model, you can paint the texture on to the SketchUp face using the SketchUp Materials In model dialog|
|Grass||Grass_01||/ Textures/ Ground||The free textures are different from the rest of the Browser. They are drag and drop items. Once you drop the texture thumbnail into the model, you can paint the texture on to the SketchUp face using the SketchUp Materials In model dialog|
|Inside Rug||VP Carpet 17||keyword search "VP Carpet 17"|
|Herman Miller Chairs||Herman Miller Executive Lounge||keyword search "executive lounge"|

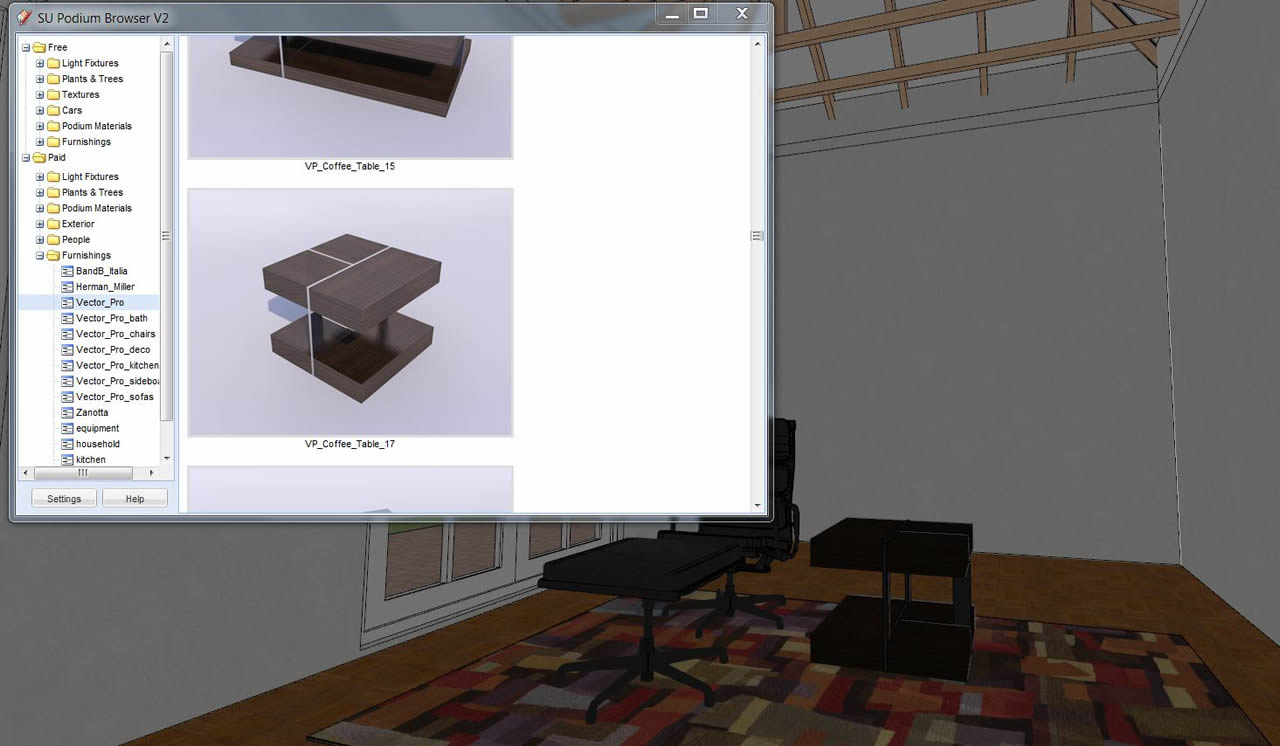

|Coffee Table||VP Coffee Table 17||keyword search "VP Coffee" and pick Table 17|
|Storage Cabinet||Eames storage 2||keyword search "Eames storage"|
|Inside Corner Plant||Plant 04||keyword search "Plant 04"|
|Painting||Painting||keyword search "painting"|
|Floor Lamp||Foscarini_totem2_FL||Light Fixtures/ Floor||keyword search "Foscarini"|
Your final model and rendered image should look something like the above image. This image is using Scene 3 from the original model. Shadows are on, physical sky is on, presets are interior_default. No other Podium properties have been applied.
Click on the image above to view the You Tube video. Make sure to choose HD quality and increase the display size.
Podium Browser Materials Video
SU Podium Browser material section now has hundreds of Podium Materials that are material files with Podium render-ready properties on them. Podium Materials are dropped in to SketchUp as cubes. How and why does that work?
This simple video tutorial will show how the material cubes work and how easy it is to get high quality render ready materials into your model. This video is based on Podium Browser 1 which is an older interface. However the Podium Materials work the same way as Podium Browser Version 2.
Don't want to or can't access You Tube?
Watch the Flash video directly. You will be asked to install Flash if you do not have it on your computer.
